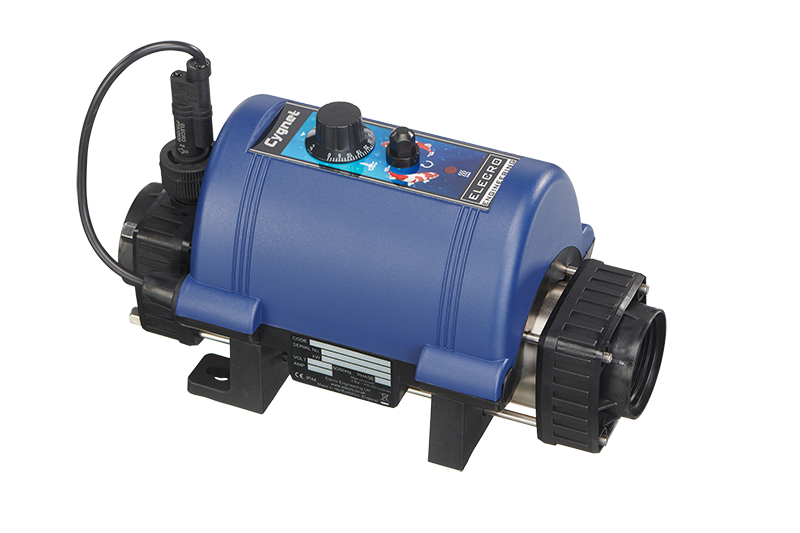

ELECRO NANO CYGNET 4KW ANALOGUE HEATER (TITANIUM ELEMENT

HiSpecifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.



Features & Benefits

Various power options ranging from 1-kW to 4-kW

Easy installation, fully equipped and pre-wired

Robust, durable construction

Ultra-reliable flow switch allows safe operation

Supplied with temperature thermostat and overheating sensor

Compact, durable design

Analogue control with 1.2°C differential

Titanium flow tube and titanium heating element

Can be floor or vertically wall mounted

Vortex, long life, stay clean heating element technology

100% efficiency throughout the product life

Silent operation

Technical Data

Power Supply

220-240V single phase



Flow Requirements

Minimum flow: 1m³/h

Maximum flow: 17m³/h



Heating Element

Grade 1 titanium



Flow Tube

Grade 1 titanium



Control Thermostat

Analogue: 0>45°C (1.2°C differential)



Safety Thermal Cut Out

60°C (manual reset)



Flow Switch

Gold tipped reed switch with titanium fulcrum pin



Relay

Surface mount DPDT Finder 66.82.8.230.0000



Seals

High temperature special formula EPDM ferrules, TPE end fitting gaskets



Water Connections

1.5" BSP female thread supplied with 1½" / 50mm stepped ABS unions for rigid pipe and 1½" / 1¼" stepped hose tails for flexible pipe



Ingress Protection Rating

IP44



Frequency

50/60 Hz



Working Pressure

4 bar maximum



Mounting

Floor or wall mounting
